MCO Human Health, Countermeasures, and Life Support

Created: session 24, 2026-04-05

Overview

The Mars Campaign Office (MCO) human health and life support portfolio is much larger than the EIO autonomy domain previously mapped. Of the 49 active MCO projects (as of 2026-04-07 re-query), 41 are TX06 (Human Health, Life Support, and Habitation Systems) — 83.7% of the program. The EIO autonomy cluster (5 projects) is ~10% of MCO. Two new projects vs. session 24 (47→49): FROSTE [182201] (Frozen Return Samples to Earth, MSFC, TX14.1 cryogenic sample containers for Moon/Mars return, TRL 2→4, ends Sep 2026) and AMPS [10759] (Advanced Modular Power Systems, GRC, TX03.3.1, TRL 4, 2011-2028 — exploration power electronics testbed). The life support and human health work is the bulk of the program by count, budget proxy, and TechPort view count.

Query: find_projects(query="MCO human countermeasures crew health performance", program=MCO, status=Active) → 47 results, 2026-04-04 cache. Sample: 47/47 (complete active MCO portfolio).

Confidence: confirmed — complete active MCO portfolio scan.

Key Theme Clusters

1. Exercise Countermeasures Cluster

The core MCO human health challenge for Mars transit: preventing bone/muscle loss in microgravity during a ~3-year round trip, then enabling the crew to function immediately on arrival in Martian gravity. Four tightly coupled projects, all TX06.3.2 (Prevention and Countermeasures), all JSC-led, all sharing the same program contacts (Aitchison, Ise, Smith), all "Advanced From 2024-10-01."

Exploration Exercise System (EES) Development (157163)

  • TRL: 1→4 (target 9), 2020–2029
  • Views: 4,175
  • Goal: Single compact exercise device to replace multiple ISS exercise systems (T2 treadmill + ARED resistance device + CEVIS cycle ergometer)
  • Image (387840): CAD rendering of a standalone exercise pod — rounded-rectangular module, single integrated device on floor combining resistance and treadmill functions; astronaut shown at full standing height inside. The form factor is small enough for a transit vehicle crew cabin.
  • States: TX + Outside the United States — international partner (likely ESA; ESA has parallel compact exercise device research)
  • Gap to TRL 9: Requires in-orbit demonstration (ISS or Artemis). TRL 1→4 in 5 years; TRL 4→9 requires flight hardware development and demonstration.

Exploration Exercise System (EES) Physiology (157164)

  • TRL: 1→3 (target 7), 2020–2030
  • Views: 3,868 | Last updated 2026-04-03 (recent)
  • Goal: Define the physiological requirements — what loads, modalities, and frequencies the EES must deliver to prevent deconditioning for surface operations
  • Image (388426): ISS photo showing astronaut running on T2 treadmill with harness/bungee system in microgravity — this is the current baseline being improved. The harness complexity and volume requirements of current T2 are the design constraint EES must beat.
  • Key constraint from description: Current systems are "not completely effective for crew egress or immediate surface EVA after a long period in deep space." ISS system works for ISS mission profile but not Moon/Mars gravity transition.
  • Same PI as EES Development (Brian J Prejean) — PI straddles both hardware and physiology work.

Sensorimotor Countermeasures (157166)

  • TRL: 2→5 (target 9), 2020–2030
  • Views: 4,263 | 10-year program
  • Goal: Countermeasures for neurovestibular adaptation — disorientation training, inflight performance maintenance, post-transit gravity re-adaptation
  • Image (388427): Four-panel research montage: (A) tilt-table + eye-tracking camera for vestibulo-ocular reflex testing, (B) rotating chair/short-arm centrifuge session, (C) VR headset + IMU suit on obstacle course for balance/gait assessment, (D) digital avatar walking on lunar surface with yellow footprint trail — simulation environment for lunar gravity adaptation
  • TRL 5 at 6 years is meaningful — validated tools in relevant environments. Target TRL 9 requires actual crew performance validation in lunar/Mars gravity.

MAVRIIC — Multidisciplinary Analytics, Visualization, and Reporting Interface for Integrated Countermeasures (157165)

  • TRL: 1→3 (target 6), 2021–2026 (ends September 2026)
  • Views: 4,298 | High for a TRL 3 software tool
  • Goal: Decision-support dashboard for countermeasure efficacy — visualizes crew health and performance (CHP) data to help flight surgeons and strength/conditioning specialists optimize exercise prescriptions
  • Image (387841): Actual application screenshot showing historical ISS data for "Laurie Ward, Exp 50&61/70S, Post-Flight, Landed Dec 02, 2017." Displays ARED session data: 29 weeks, 176 total sessions, 5.8/week; load progression bar charts across 7 exercises; individual exercise weekly load vs. prescribed; body-weight-normalized distribution. Interface has tabs: Exercise, Performance, MedB. Left sidebar: exercise types (ARED, CEVIS, T2) and astronaut record navigation.
  • Significance: Real post-flight data in prototype tool. Ends in 6 months — either transitions to operations or closes out. TRL 3 to deployed operational tool in 6 months is aggressive.

2. Bioregenerative Food: Ohalo III

Ohalo III: First Operational Crop Production System (97036)

  • TRL: 6 (start=6, current=6, target=9), 2019–2029
  • Views: 4,587 | KSC lead (Gioia D Massa, PI)
  • Goal: Grow crops for astronaut diet during Mars transit — fresh food for nutrition, menu variety, and psychological health
  • Description extract: "Bioregenerative foods as part of the astronaut diet are expected to provide whole food nutrition, improve menu variety, and positively impact behavioral health."
  • EDU image (390326): Two-chamber hardware unit with purple/pink LED grow lights (red+blue for photosynthesis), control panel, "OHALO III" branded touchscreen. Rack-mountable hardware, ISPR-compatible dimensions.

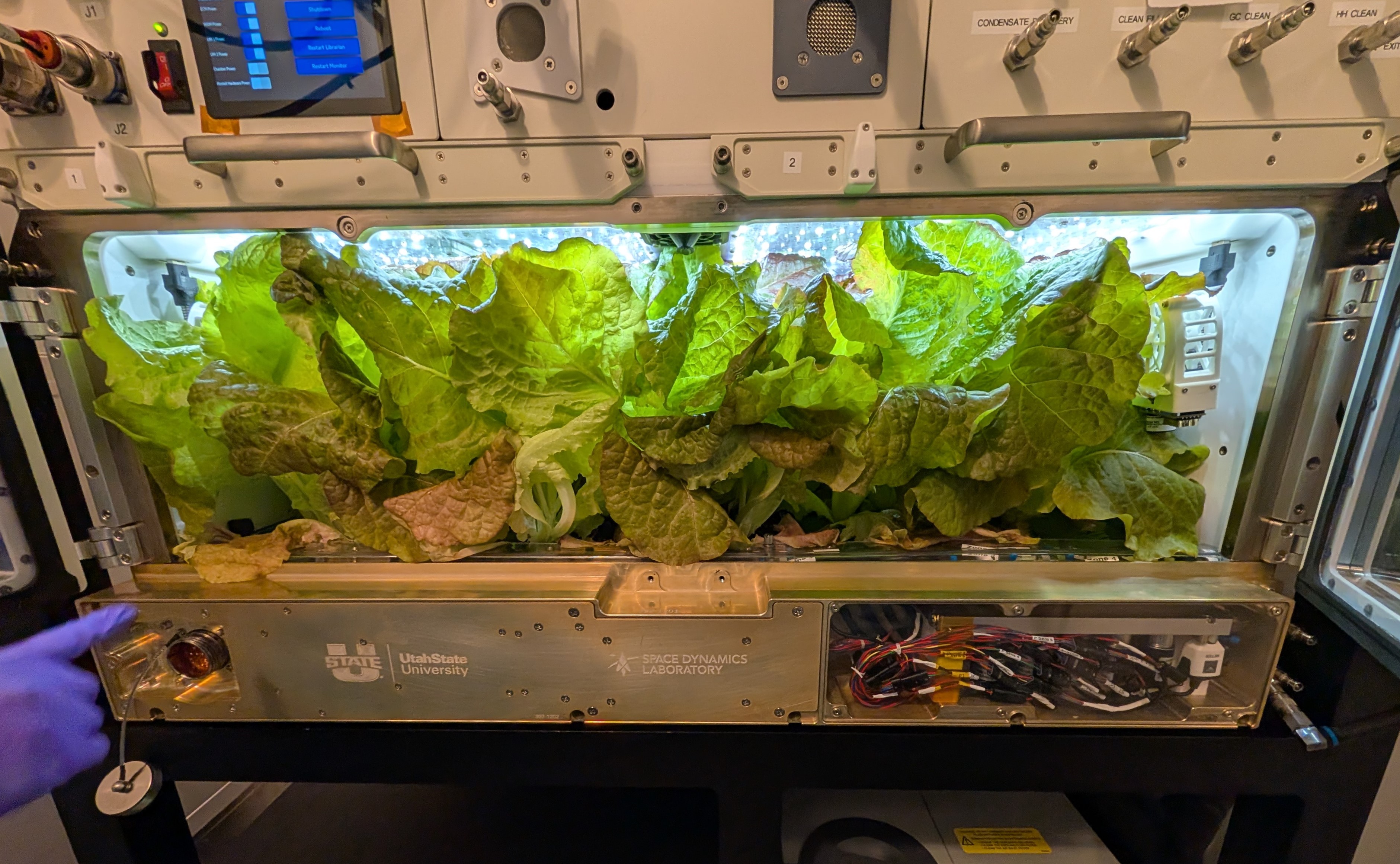

  • Crops image (390325): Full-sized mature lettuce (romaine type, large heads) growing in combined Ohalo/URRM system. Utah State University + Space Dynamics Laboratory branding on the front panel. Background shows condensate recovery and water management connections. This is actual food — harvestable lettuce — in a ground test environment.

Ohalo III lettuce crop grown in combined Ohalo/URRM system

  • Key finding: TRL stuck at 6 despite 7 years of funding (2019–2026). Ohalo III has demonstrated food production (TRL 6 = demonstrated in relevant environment) but the path to TRL 9 (operational on actual spacecraft) requires ISS or flight demonstration.
  • Partner: Utah State University / Space Dynamics Laboratory built the grow hardware. Ohalo naming suggests evolution: Ohalo I, II predecessors (VEGGIE → Advanced Plant Habitat lineage at KSC).
  • Destinations: Earth, Mars, Low Earth Orbit — the growth progression. ISS demo precedes Mars.

3. ECLSS / Life Support Systems

High-view-count projects indicating operational significance. Several have been flying on ISS for years and are being upgraded for exploration class missions.

Project ID TRL Views Status
Universal Waste Management System (toilet) 93128 7→8 5,250 Active to 2029
Life Support: O2 Generation and Recovery 93167 4→6 4,776 Active to 2030
Advanced O2 Generation Assembly 157887 6→9 4,053 Active to 2029
Life Support: CO2 Removal 93177 5→6 4,142 Active to 2030
Life Support: Wastewater Processing 93182 4→6 3,893 Active to 2029
Life Support: Environmental Monitoring 93156 5→6 3,565 Active to 2033
Water Processor Assembly Upgrades 157886 6→9 3,270 Active to 2029
Mars Food Refrigeration 182790 5→7 3,247 Active to 2031
Bioregenerative Life Support 157839 5→7 1,812 Active to 2029
Exploration Sabatier 184079 4→7 916 Active to 2028

Key notes on ECLSS cluster: - UWMS (93128, 5,250 views — highest in MCO) is the space toilet. TRL 7 indicates hardware exists and has been validated. Boeing/Collins not mentioned here (that's WPA); UWMS tracks the waste management line. - Water Processor Assembly Upgrades (157886): Boeing (prime) + Collins Aerospace (subcontractor). Focus on siloxane contamination → DMSD (dimethylsilanediol) conversion. Multi-filtration bed upgrade already complete; further upgrades ongoing. - Advanced O2 Generation Assembly (157887): "over 13 years" operational on ISS — this is production hardware, not prototype. The upgrade project is extending it for exploration atmospheres. - CO2 Removal (93177) and O2 Generation (93167) are sister projects — together they close the atmosphere loop. Both active through 2030. - Exploration Sabatier (184079): New project (TRL 4, ends 2028). Sabatier reaction: CO2 + H2 → CH4 + H2O. Recovers oxygen from metabolic CO2. ISS uses a Sabatier system but new design needed for exploration atmosphere pressures and enriched O2 environment.

Structural observation: The ECLSS cluster has very high view counts (3,000–5,000) — comparable to top technology projects in STMD. This suggests significant operational community attention — flight surgeons, ECLSS engineers, mission planners all tracking these upgrades.

4. Medical / Diagnostics

Project ID TRL Notes
Mini Optical Coherence Tomography 157621 6→9 SANS diagnostic — OCT retinal imaging miniaturized for space
Multi-Functional Integrated Medical Device 157729 7→8 Ends 2026-09 — closing out
Magnetic Electrochemical ELISA 182471 2→5 Point-of-care biomarker testing
Miniature X-Ray 182473 7→8 EVA injury diagnostics
IntraVenous Fluid Generation 96991 6→8 In-situ IV fluid generation for Mars
Chiron Exploration Health Portal 145030 4→8 Medical decision support for Earth-independent care, ends 2027
Pharmacy 157730 5→6 Medication stability in vacuum/radiation; ends 2026
Crew State & Risk Model 157626 4→7 Physiological model for exploration tasks

Key medical notes: - SANS (Spaceflight Associated Neuro-ocular Syndrome) — elevated ICP from fluid redistribution in microgravity causing optic nerve swelling and vision changes. Mini OCT (157621, TRL 6) is the diagnostic countermeasure. This is one of the most clinically significant human spaceflight risks. - IV Fluid Generation (96991): In-situ generation of saline/lactated Ringer's from water — critical for Mars where resupply is impossible. TRL 6 confirms this works; path to TRL 8 requires flight demo. - Chiron (145030): Telemedicine portal for Earth-independent medical care. 4→8 target by 2027 is aggressive.

5. Fire Safety

Four active projects under TX06.4.2 (Fire Detection, Suppression, and Recovery):

Project ID TRL Notes
Emergency Breathing Apparatus 157851 5→7 Smoke/fire emergency breathing in spacecraft
Acid Gas Detection & Absorption 157849 5→6 HCl/HF from burning polymers; Anomaly Gas Analyzer; also for Orion
Partial-g Fire Detection 157850 3→6 Flame behavior in lunar/Mars gravity — fundamentally different from ISS
Li-ion Battery Fire Tests 157848 4→6 Worst-case fire scenario for Orion/HLS; O2-enriched atmosphere risk
Fire Scenario Modeling 157847 5→6 Saffire-IV/V/VI data → fire model for spacecraft ECLSS

Key fire safety note: Partial-gravity fire detection (157850) is a fundamental gap — flame behavior in 1/6 g (lunar) and 1/3 g (Mars) is different from microgravity and from 1g. ISS fire detection algorithms don't transfer. This is a safety-critical gap with no current solution (TRL 3).

6. Radiation

Project ID TRL Notes
HZETRN Physics Development 182431 3→8 Radiation transport code for crew dose modeling
Compact Electron Proton Spectrometer 182428 4→8 Solar energetic particle monitor for crew warning
Integrated SEP Warning System 182433 6→8 Real-time solar storm warning for crew shelter timing
LOONS (Lunar Neutron Spectrometer) 182437 4→6 Lunar surface albedo neutron characterization

Radiation note: The ISEP Warning System (182433, TRL 6) is the most advanced — this is a real operational tool developed at JSC/GSFC with CCMC since 2018. TRL 6 means it's been demonstrated in relevant environments (space radiation monitoring). The path to TRL 8 likely involves operational use on Artemis.

Structural Observations

MCO portfolio architecture: The MCO human health portfolio is an end-to-end Mars mission medical capability stack — not just isolated technologies. The projects connect: 1. Pre-flight readiness: exercise protocols (EES Physiology) 2. In-flight maintenance: exercise device (EES Development) + ECLSS + food (Ohalo III) + medical monitoring (MAVRIIC, Crew State & Risk Model) 3. Emergency response: fire detection, breathing apparatus, IV fluids, emergency medical 4. Post-flight/surface recovery: sensorimotor countermeasures for gravity re-adaptation

View count pattern (informative): The UWMS (toilet, 5,250 views) beats EIO autonomy projects. The community tracks operational hardware more than research-stage autonomy. High view counts correlate with: (a) flight hardware approaching maturity, (b) projects with ISS operational connection, (c) topics with direct crew safety implications.

TRL stall patterns: Multiple projects sitting at TRL 6 for years (Ohalo III, various ECLSS items). The path from TRL 6 (demonstrated in relevant environment) to TRL 7+ requires actual spaceflight, which is constrained by flight opportunities.

2026 closures: MAVRIIC (157165), Multi-Functional Medical Device (157729), Pharmacy (157730), FROSTE (182201) all end September 2026. Watch for either operational transitions or funding gaps.

International dimension: EES Development (157163) lists "Outside the United States" in states — unusual. Only project in the exercise cluster to note this. Likely ESA collaboration (ESA has been developing Fliss and other compact exercise device concepts for Lunar Gateway).

Open Threads

  1. ECLSS cluster deep-dive — UWMS (93128), O2 Gen (93167), CO2 Removal (93177), WPA (157886) not yet read. High view counts suggest substantial content. Fetch full detail + any library documents.
  2. Ohalo III ISS flight status — TRL 6 since 2019; what's the plan for ISS demonstration? Is it already flying or waiting for flight manifest slot?
  3. Chiron health portal (145030) — TRL 4→8 by 2027 is extremely aggressive. What's the actual status?
  4. EES international partner — "Outside the United States" state flag. Which international agency? ESA? What are they contributing?
  5. MAVRIIC transition — MAVRIIC ends September 2026. Does it transition to HRP operations? Is there a flight designation?
