Mars ISRU Oxygen and Propellant Production

Last updated: session 50, 2026-04-06

Summary

Mars ISRU for oxygen and propellant production is the critical enabling technology for a crewed Mars return mission. The Martian atmosphere (95% CO2) and subsurface water ice are the feedstocks; oxygen (propellant LOX) and methane (propellant CH4) are the target products. MOXIE proved the concept at 1% scale on Mars in 2021–2023. Scaling up to mission-relevant production rates (1+ kg/hr O2) is in progress but has no TRL 7+ system demonstration funded. This is the largest technology gap in the current Mars mission readiness picture.

Scale Gap: Why MOXIE Is Not Enough

MOXIE (116291) produced oxygen on Mars at 20 g/hr — demonstrating the concept in the actual Mars environment. For a crewed return mission:

  • Mars ascent vehicle (MAV) propellant: ~25-30 metric tons CH4/LOX
  • LOX fraction: ~75%, so ~18-22 metric tons LOX needed
  • Pre-positioned production time before crew arrival: ~26 months (~780 days)
  • Required production rate: ~25 kg/day O2 → ~1 kg/hr minimum

MOXIE production rate is 50-125x below mission-relevant threshold. The next milestone (OxEon MOMS breadboard) targets 1-3 kg/hr — barely at the lower bound for a single-unit prototype, and still far from a full Mars propellant plant.

MOXIE Heritage Chain

Generation 1: Proof of Concept (Mars-flown)

Project ID Program TRL Status What
MOXIE (MCO) 33080 MCO 4→5* Completed Perseverance rover payload; produced O2 on Mars surface
MOXIE (TDM) 96183 TDM 4→7 Completed STMD TRL tracking for same hardware
MOXIE (GCD) 116291 GCD 5→8 Completed 1% scale O2 plant; 20 g/hr, 99.6% purity, validated across Martian seasons

MCO project records TRL 5 (subscale demo, not full production); TDM records TRL 7 (demonstrated in relevant environment); GCD records TRL 8 (validated in flight-like environment/actual Mars). The three records represent different TRL assessment standards for the same physical hardware.

Key limitation: MOXIE was 1% scale — a science instrument, not a production system. Demonstrated feasibility of CO2 electrolysis in Mars environment. Does not address: scale-up engineering, dust contamination management, long-duration operation (years, not months), thermal management at production scale.

Generation 2: Ground-Scale Demonstration

Project ID Program TRL Status Rate
ISRU-O2 Production 116392 GCD 4→6 Completed Higher than MOXIE; exact rate not in TechPort

OxEon Energy (North Salt Lake, UT) delivered the ground demonstration unit. TRL 6 = validated prototype in relevant environment. Established OxEon as the primary NASA vendor for SOEC Mars ISRU.

Generation 3: Breadboard at Mission-Relevant Rate

Project ID Program TRL Status Rate End
Mars Oxygen and Methane System (MOMS) 158003 SBIR 4→5 Active 1-3 kg/hr O2 + CH4 Sept 2026

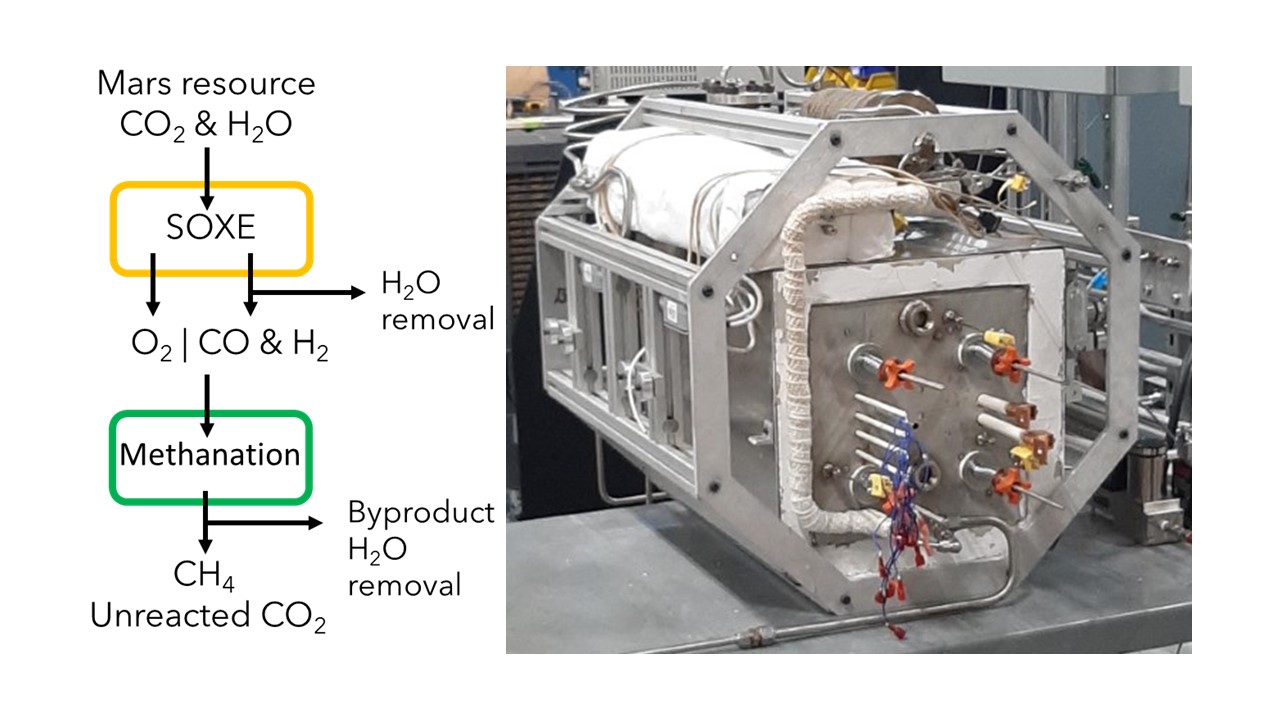

OxEon MOMS SOXE+Methanation system OxEon MOMS system: (left) flow diagram showing CO2+H2O from Mars → SOXE electrolysis → O2 + CO/H2 → Methanation → CH4 + unreacted CO2. (right) The actual integrated hardware — octagonal insulated reactor vessel with valve manifold. Real hardware at lab scale.

MOMS scope: - 5,000–10,000 hours of SOCE stack qualification testing (materials durability) - Performance mapping for co-electrolysis (CO2 + H2O simultaneously → O2 + CH4) - Breadboard system: 1-3 kg/hr O2 at 1-4 bar, CO2→CH4 conversion >60-80% - Mars-relevant conditions testing - Deliverable: integrated Mars ISRU breadboard to NASA JSC

Gap still remaining after MOMS: MOMS targets TRL 5 (breadboard at component level). Full-scale Mars propellant plant would need TRL 7+ system demo integrated with: - Dust filters (Mars dust is abrasive and clogs filters; MOXIE had dust management issues) - Thermal management (SOEC operates at ~800°C; waste heat recovery critical) - H2O extraction from Mars regolith - Long-duration autonomy (no crew present during 26-month pre-position phase)

No funded project currently addresses this integration to TRL 7+.

Alternative Approaches (Active)

MARS-C: Ambient-Condition Electrochemical Cell

Project ID Program TRL Lead End
MARS-C 184153 FO 4→5 UTSA June 2027

Novel approach: Patent-pending single electrochemical cell fed directly with Martian regolith brine (water + dissolved minerals) + CO2 atmosphere. Produces O2 + H2 + C1 and C2 hydrocarbons in a single step at Martian ambient conditions — no high-temperature operation required (vs. SOEC at ~800°C).

Why this matters: SOEC systems require significant power to maintain 800°C; MARS-C operates at ambient Martian surface temperature (~-60°C to +20°C). This eliminates one major power and thermal management burden. The regolith mineral content in the brine may also catalyze reactions.

Partners: UTSA, Southwest Research Institute, UT Austin. FO project = parabolic flight validation for reduced-gravity bubble dynamics (gas products must nucleate and detach properly in 0.38g).

Confidence: speculative — patent-pending technology, no published test results in TechPort. View count 1,657 for a new project suggests community interest.

Faraday Technology: Ultra-Low Temperature CO2 Valorization

Project ID Program TRL Lead End
CERUV 182888 SBIR 5 Faraday Technology Feb 2027

Electrochemical CO2 reduction at ultra-low temperatures to hydrocarbons and oxygen. Full title: "Climate Enhancing Resource Utilization Through Ultra-low-temperature, Electrolytic Carbon Dioxide Valorization on Mars." TRL 3→5.

Mars Surface Power: SOFC Strategy (New, 2026)

Two fresh GCD projects (updated March 2026) reveal NASA's Mars surface power strategy:

Project ID Program Lead End What
SOFC Test Capability 184655 GCD GRC Dec 2026 Restore GRC capability to test CH4/O2 SOFC stacks
JSC SOFC Environmental Testing 184653 GCD JSC 2027 Test SOFC systems under simulated Mars descent/surface conditions

The strategy: CH4 produced by MOXIE/MOMS + O2 also produced by MOXIE/MOMS → burned in SOFC for surface power during descent and early surface operations. The Mars lander arrives with propellant-grade LOX, and SOFC uses that same oxygen surplus for power generation.

This reveals a closed-loop design intent: ISRU O2 production serves both propellant depot (for return) and power generation (for surface operations). The GRC + JSC SOFC projects are the validation infrastructure for this strategy. Both cite DRA 5.0 (NASA Mars Design Reference Architecture 5.0).

Note: These projects test SOFC with CH4/O2 (not CH4/air). The Mars atmosphere is 95% CO2, ~0.14% O2 — unusable for air-breathing systems. All Mars surface power must be ISRU O2 supported.

Technology Readiness Landscape

TRL 8: MOXIE (Mars-flown, subscale)                      [complete]
TRL 6: OxEon ISRU-O2 GCD ground demo                     [complete]
TRL 5: OxEon MOMS breadboard 1-3 kg/hr                   [active, Sept 2026]
TRL 5: MARS-C ambient electrochemical cell                [active, 2027]
TRL 5: Faraday ultra-low temp CO2 valorization            [active, 2027]
TRL 4: GRC SOFC test capability (power strategy)          [active, Dec 2026]
TRL 4: JSC SOFC environmental testing                     [active, 2027]
TRL ?: Full-scale propellant plant (5+ kg/hr, integrated) [not funded]

The gap between TRL 5 (MOMS breadboard) and a flight-ready Mars propellant plant spans at least TRL 6-7 system integration, 10,000+ hours lifetime testing, and flight-like hardware qualification — none of which is currently funded in TechPort.

Key Companies and Institutions

  • OxEon Energy (North Salt Lake, UT) — dominant SOEC vendor for NASA, multiple SBIR phases + GCD prime. PI: Singaravelu Elangovan (elango@oxeonenergy.com). JSC program contact: Jason Kessler.
  • UTSA/SwRI/UT Austin — MARS-C, ambient electrochemical approach
  • Faraday Technology — ultra-low temperature electrolysis
  • JPL — MOXIE hardware developer (original system)
  • GRC — SOFC test infrastructure + cryocooler portfolio
  • JSC — integration, system testing, SOFC environmental

Confidence Tags

  • MOXIE scale gap: confirmed (MOXIE 20 g/hr vs. mission need ~1 kg/hr)
  • OxEon MOMS targeting 1-3 kg/hr at TRL 5: confirmed (project description)
  • No TRL 7+ system demo funded: confirmed (no such project found in TechPort search)
  • MARS-C novel electrochemistry: speculative (patent-pending, no test data visible)
  • CH4/O2 SOFC as Mars power strategy: confirmed (two GCD projects, DRA 5.0 reference)
