Freedom Photonics — Vendor Profile¶
Established: 2026-04-08 (session 94) | Data snapshot: 2026-04-04
Summary¶
Freedom Photonics, LLC (Santa Barbara, CA) is the single most prolific vendor in the NASA SBIR TX08 photonics space, with 44 TechPort projects across 9 distinct technology tracks. Core competency: InP-based tunable semiconductor lasers. SBIR relationship spans at least 2011–2023, with one GCD project still active as of 2026. Highest TRL achieved: TRL 8 ([113556] GPON/gas sensing, 2023) with confirmed commercial co-investment.
Key finding: Despite 44 projects, TRL 8 achievement, and explicitly described commercial customer co-investment, Freedom Photonics records 0 Infused_To and 0 Transitioned_To outcomes in TechPort. All outcomes are Closed_Out or Advanced_From/Advanced_To (Phase I→II links). This is the strongest single-vendor evidence for the SBIR commercial success masking pattern (see field-completeness.md Issue 9 / outcome_path filter discussion).
Portfolio Overview¶
| Metric | Value |
|---|---|
| Total projects | 44 |
| Program | 43 SBIR/STTR + 1 GCD active |
| Status breakdown | 43 Completed, 1 Active |
| TRL range | 0→8 (highest: TRL 8 [113556]) |
| Infused_To outcomes | 0 |
| Transitioned_To outcomes | 0 |
| Core technology | InP-based tunable semiconductor lasers |
| Location | Santa Barbara, CA |
Query: techport_find_projects(lead_organization="Freedom Photonics", status=null, limit=50) → 44 projects | 2026-04-04
Technology Tracks¶
Track 1: FOSS Interrogators — Structural Health Monitoring (TRL 6 peak)¶
FOSS = Fiber Optic Sensing System — a LaRC technology that distributes Fiber Bragg Grating (FBG) sensors along aircraft wings/fuselage for real-time structural strain monitoring. Deployed by AFRC on test aircraft (Global Hawk, X-57 Maxwell, etc.). The interrogator is the laser-scanning unit that reads the FBG sensors.
Freedom Photonics solved the interrogator's key cost/volume bottleneck: the wavelength-tunable swept laser source.
| Project | Title | Period | TRL | Outcomes |
|---|---|---|---|---|
| 33379 | Integrated Optical Engine for FOS Interrogators | 2013-2015 | 2→4 | 1 (Closed_Out) |
| 33672 | Airborne Fiber Sensor Interrogator — Monolithic Laser, Phase I | 2015 | 3→5 | 4 (Closed_Out + Advanced_To) |
| 90383 | Inexpensive Rugged Compact Tunable Laser for FOS Interrogators | 2015 | 2→3 | 3 |
| 93552 | Inexpensive Rugged Compact Tunable Laser — Phase II | 2016 | 2→4 | 3 |
| 93568 | Integrated Photonic Engine for FOS Interrogators | 2016 | 3→4 | 0 |
| 90539 | Airborne Fiber Sensor Interrogator — Monolithic Laser, Phase II | 2016-2018 | 3→6 | 3 (Closed_Out + Advanced_From×2) |
PM: Hon M Chan (patrick.hm.chan@nasa.gov) — LaRC/AFRC FOSS program PI: Daniel Renner (Freedom Photonics)
Document read [90539], file 364531 (session 94):

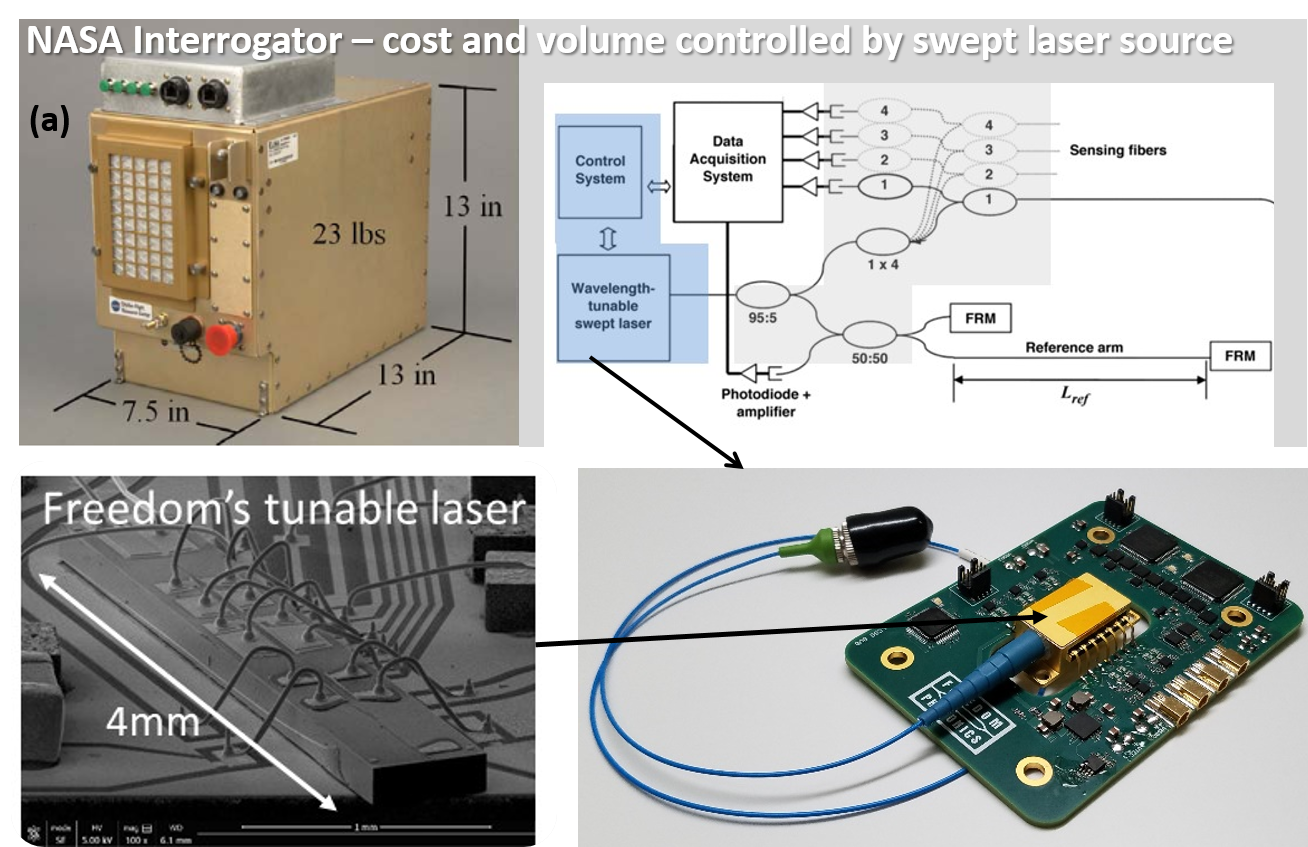

The final system is a 13"×13"×7.5", 23-lb gold-anodized box — a complete, flight-qualifiable 4-channel FBG interrogator. Architecture: wavelength-tunable swept laser → 95:5 splitter → 1×4 switch → 4 sensing fiber channels + reference arm with FRM (Faraday Rotation Mirror). The document title is explicit: "NASA Interrogator – cost and volume controlled by swept laser source."
Freedom Photonics' contribution: a 4mm InP tunable laser chip (SEM visible in document) → packaged as a PCB module → inserted as the swept laser source in the interrogator box. Two orders of magnitude lower SWaP vs prior commercial swept laser sources.
Phase 2 transition mechanism: SBIR funded the specific component (swept laser source) that blocked cost reduction of a NASA-developed technology (FOSS). The technology transfer pathway is NASA→NASA (LaRC → AFRC). No commercial customer — zero Transitioned_To records expected.
Track 2: Methane/GHG LIDAR Seed Sources (TRL 8 peak)¶
NASA applications: methane LIDAR (DIAL/IPDA) for atmospheric sensing (global methane mapping, methane plume detection). Primary PM: Mark Stephen (GSFC), one of NASA's senior LIDAR scientists.
1645-1650nm chain (methane absorption band):
| Project | Title | Period | TRL |
|---|---|---|---|
| 89505 | 1650nm Widely Tunable Semiconductor Laser, Phase I | 2018 | 2→3 |
| 93839 | 1650nm Widely Tunable Semiconductor Laser, Phase II | 2019 | 2→4 |
| 112841 | 1645nm Chip-Scale Seed Source for Methane LIDARs, Phase I | 2021 | 1→3 |
| 112907 | 1645nm Chip-Scale Seed Source for Methane LIDARs, Phase II | 2021 | 3→5 |
| 71993 | 1.65μm Seed Laser for Methane LIDAR (GCD) | 2013-2020 | 3→6 |
Culmination — GPON/Gas Sensing TRL-8 [113556]:
| Project | Title | Period | TRL |
|---|---|---|---|
| 113556 | Tunable Semiconductor Lasers for GPON and Gas Sensing | 2021-2023 | 4→8 |

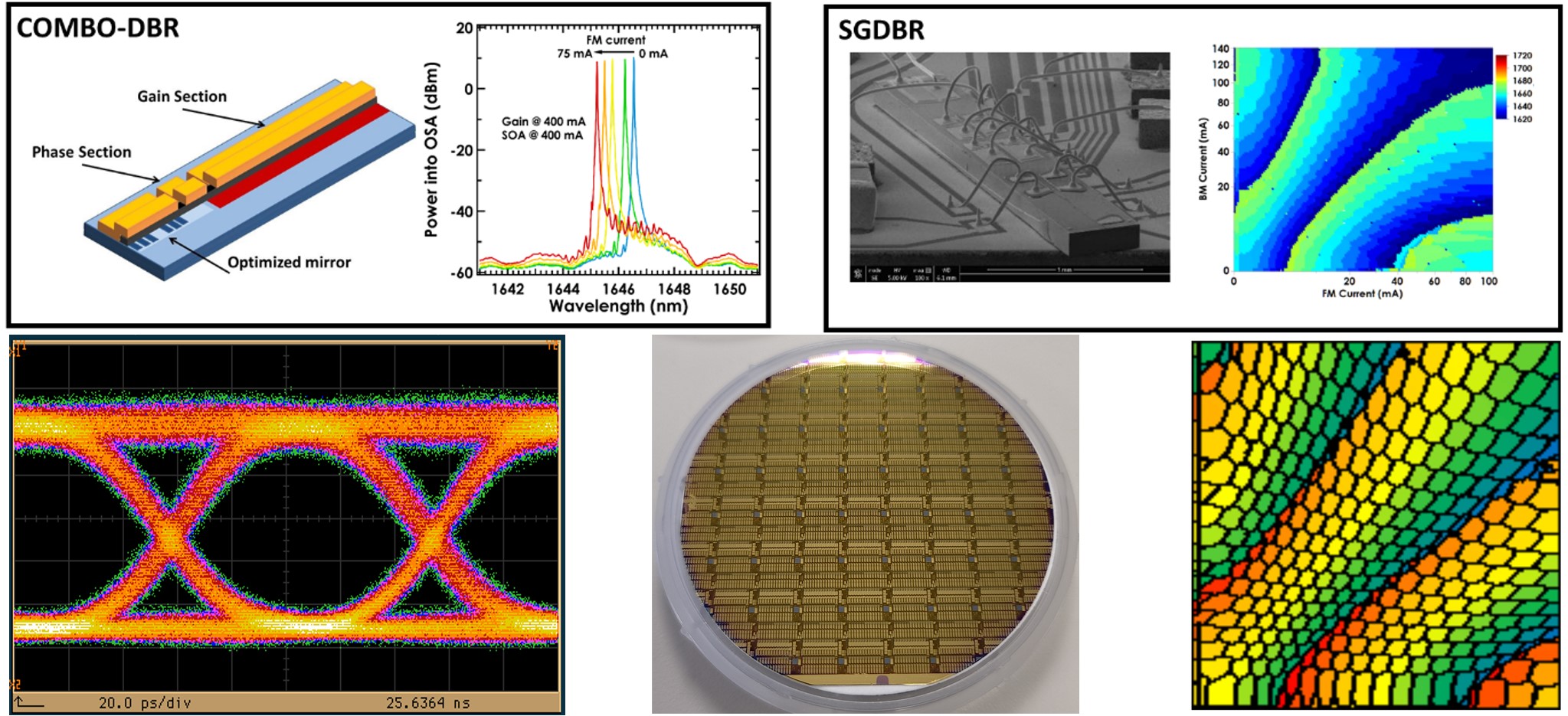

This is the highest-TRL Freedom Photonics project. Two laser architectures developed: - COMBO-DBR: 3-section DBR, narrow tuning around 1645-1650nm, high-power, simpler control. For DIAL methane sensing. - SGDBR: Sampled Grating DBR, ~100nm wide tuning range (1620-1720nm), highly tunable. For wide-spectrum sensing and GPON optical communications.
Production evidence: full 3-inch InP wafer shown in document — hundreds of chips, production-scale manufacturing.
GPON validation: open-eye data communication diagram at high data rates confirms suitability for telecom/fiber network applications.
Commercial co-investment: Project description states "We have been working with two commercial customers to transition this technology for sensing and optical communication applications. They are both investing funds into this transition." — confirmed commercial transition is happening yet TechPort records only Closed_Out.
PM: Mark Stephen + Joseph Famiglietti (both GSFC)
Track 3: 1030/1045nm LIDAR Sources¶
For cloud/aerosol LIDAR and wind sensing (NASA LaRC's HSRL and DAWN instruments use ~1064nm systems; 1030nm is Yb-doped fiber amplifier seed wavelength).
| Project | Title | TRL |
|---|---|---|
| 103169 | 1030nm Tunable Laser for LIDAR — Phase I | 1→3 |
| 125370 | 1030nm Tunable Laser for LIDAR — Phase II | 3→5 |
| 182925 | 1030nm Tunable Laser for LIDAR — Phase III | 1→3 |
| 102088 | 1045nm Widely Tunable Laser for LIDAR | 1→3 |
[182925] TRL regression (3→1): data quality anomaly — likely reflects a Phase I restart, not actual TRL regression.
Track 4: Deep Space Optical Communications¶
Free-space optical communications for deep space missions. NASA's LLCD (Lunar Laser Communications Demonstration) and LCRD (Laser Communications Relay Demonstration) era investments.
| Project | Title | TRL |
|---|---|---|
| 18012 | High Efficiency Laser Transmitter for Deep Space | 3→6 |
| 89493 | Integrated Optical Transmitter for Space — Phase I | 2→3 |
| 112789 | Integrated Optical Transmitter for Space — Phase II | 2→4 |
| 93501 | Geiger-Mode SiGe Receiver for Long-Range Optical Comms — Phase I | 3→5 |
| 101869 | Geiger-Mode SiGe Receiver — Phase II | 3→5 |
| 102889 | Miniaturized FSO Transceivers for CubeSats | 3→5 |
TRL plateau at 5 for most communications hardware — suggests this track did not advance to mission-level development (possibly superseded by LLCD/LCRD program-level systems).
Track 5: Cold Atom / Navigation Sensing¶
Laser sources for atom interferometry (accelerometers, gyroscopes, gravimeters). NASA applications: GPS-denied navigation, geodesy (GRACE-FO follow-on), fundamental physics (equivalence principle tests on ISS).
| Project | Title | TRL |
|---|---|---|
| 33710 | Compact Erbium-Doped WG Optical Gyros | 2→4 |
| 18147 | Chip-Scale Silica Ring Optical Gyro | 3→5 |
| 102738 | 852nm Tunable Laser for Atom Interferometry Gravimetry | 2→5 |
| 113031 | 850nm Narrow Linewidth Laser for Atomic Sensors | 2→4 |
852nm/850nm targets cesium D2 transition — key wavelength for cold Cs atom clocks and interferometers. This track intersects with the AOSense cold-atom sensor track profiled in tx08-sensors-instruments.md.
Track 6: Silicon Photomultiplier (SiPM) Readout¶
SiPM arrays for gamma-ray and particle detection in space science (Compton telescopes, cosmic ray monitors).
| Project | Title | TRL |
|---|---|---|
| 94773 | Tiled SiPM ROIC — Phase I | 3→5 |
| 102298 | Tiled SiPM ROIC — Phase II | 2→4 |
| 113552 | Tiled SiPM ROIC — Phase III | 4→5 |
Three-phase SBIR chain reached TRL 5. Low TRL per phase suggests incremental improvements rather than a clear mission pull. Connection to AMEGO or similar gamma-ray telescope concepts possible but unconfirmed.
Track 7: 3D Photonic Integration (InP platform)¶
Heterogeneous photonic integration enabling multiple functions on a single InP chip.
| Project | Title | TRL |
|---|---|---|
| 93525 | High Performance 3D Photonic Integration — Phase I | 2→3 |
| 95008 | High Performance 3D Photonic Integration — Phase II | 2→4 |
Track 8: Various Single Projects¶
| Project | Title | TRL |
|---|---|---|
| 113200 | Entangled Photon Transceiver (PIC-based QKD) | 3→4 |
| 113234 | GeSiSn PIN Detector Arrays for Doppler LIDAR | 2→4 |
| 94608 | High Speed Integrated Optical Switch | 2→4 |
| 102078 | Integrated RF Photonics Channelizer | 1→3 |
| 113435 | Photonic Integrated Microwave Spectrometer | 2→3 |
| 102054 | Monolithic Coherent Optical Receiver for LIDAR | 3→4 |
| 113474 | Rapidly Tuned Random Access Laser (<10ns switching) | 6→7 |
[113474] (TRL 6→7) was previously profiled in tx08-sensors-instruments.md — the rapidly tunable DIAL laser that enables on-the-fly wavelength selection for multi-species gas detection.
Track 9: Active (GCD)¶
| Project | Title | TRL | Status |
|---|---|---|---|
| 146992 | Watt-Class Diffraction-Limited Narrow Linewidth 8xx nm Diode Lasers | 4→6 | Active |
GCD investment suggests Freedom Photonics has graduated from pure SBIR to larger NASA funding mechanisms for the 8xx nm watt-class diode laser work. This track feeds into cold-atom sensor systems (852nm for Cs, 780nm for Rb).
Outcome Pattern¶
All 44 projects: 0 Infused_To, 0 Transitioned_To
Despite: - 44 completed/active SBIR awards - TRL 8 achieved ([113556]) - Confirmed commercial customer co-investment (2 customers, described in [113556]) - Product line visible at freedomphotonics.com (InP laser product catalog) - GCD follow-on award ([146992]) — NASA continued investment
This is a clean, controlled experiment: if a company with this breadth and depth of SBIR engagement leaves zero outcome records, it confirms that successful SBIR commercialization is systematically invisible in TechPort for companies that sell into non-NASA markets (GPON = telecom; cold atom sensors = defense/commercial navigation).
Counter-observation: The FOSS track (Track 1) results in a NASA internal capability — no commercial customer. It correctly records Closed_Out (no external transition). The commercial tracks (GPON, communications) also record only Closed_Out — the commercial transitions are invisible. Both pathways look identical in TechPort.
Connected NASA Personnel¶
| Name | Role | Projects |
|---|---|---|
| Jason L Kessler | SBIR Program Director | Nearly all projects |
| Carlos Torrez | SBIR Program Manager | Nearly all projects |
| Hon M Chan | LaRC/AFRC — FOSS track PM | Tracks 1 |
| Mark Stephen (Mark A Stephen) | GSFC — LIDAR/methane PM | Track 2 |
| Joseph Famiglietti | GSFC — atmospheric sciences | Track 2 |
Cross-References¶
- tx08-sensors-instruments.md — Freedom Photonics appears in TX08 laser cohort table (Track 2 capstone [113474] detailed)
- sbir-sttr-high-trl.md — high-TRL vendor comparison (now includes Freedom Photonics TRL 8 entry)
- field-completeness.md — SBIR outcome masking pattern
- topics/cold-atom-quantum-sensing.md — intersects Track 5 (852nm cold-Cs sources)
Open Threads¶
- FOSS interrogator flight record — Did the [90539] TRL-6 interrogator actually fly on an AFRC aircraft? FOSS is deployed on X-57 Maxwell, Global Hawk, and other AFRC assets. TechPort says Closed_Out — but FOSS deployment would not be tracked in SBIR records. Check AFRC FOSS program publications.
- GCD [146992] outcome — Active, TRL 4→6 target. What is the watt-class 8xx nm diode laser feeding? (Likely a NASA center cold-atom instrument project.)
- [102394] TRL anomaly — shows TRL 0→0 (Completed). Zero-duration anomaly or data entry error?
- [182925] TRL regression (3→1) — Another Phase I on same 1030nm topic with lower TRL than its Phase II predecessor. Possible Phase III Phase I restart or data error.
