Aerodyne Research, Inc. — Vendor Profile¶
Created: 2026-04-08 (session 95) | Location: Billerica, Massachusetts | NASA PM hub: LaRC (aeronautics measurement)
Summary¶
Aerodyne Research is NASA's primary SBIR supplier for precision atmospheric and aerosol measurement instruments. 35 projects across SBIR/STTR (2010–2025), with 8 completions at TRL 7-9 — the deepest NASA SBIR maturation record for a single atmospheric instrumentation firm. The pattern is distinct from commercial-transition SBIR: Aerodyne is not building for a mass market. Its commercial model is "NASA as customer" — the SBIR funds instrument R&D that Aerodyne then deploys in NASA's own airborne measurement programs, atmospheric research, and AGAGE network stations.
No Infused_To or Transitioned_To records across all 35 projects. All completions record only Closed_Out — the same commercial masking pattern as Freedom Photonics. But interpretation differs: for Aerodyne, the outcome IS NASA deployment. The instruments are delivered to NASA LaRC's airborne fleet and to NASA-sponsored ground networks. TechPort's outcome fields simply don't capture "deployed to NASA program."
Portfolio Overview¶
| Metric | Value |
|---|---|
| Total projects | 35 |
| Programs | All SBIR/STTR |
| TRL 9 completions | 1 ([101849]) |
| TRL 8 completions | 4 ([89469], [112897], [93465], [9692]) |
| TRL 7 completions | 3 ([17794], [33448], [154493]) |
| Primary NASA PM | Richard H. Moore (LaRC) |
| Primary PI | Zhenhong Yu (zyu@aerodyne.com) |
Technology area distribution: TX08 (instruments/sensors) dominates for recent projects. Older projects (2010-2014) are severely miscoded — [9692] tagged TX01.3.2 Turbine-Based Combined Cycle, [93465] tagged TX01.1.3 Cryogenic Propulsion — neither is remotely correct. The taxonomy issues are Phase 1-era data quality artifacts and do not reflect the actual technology.
Eight Technology Tracks¶
Track 1: Photoacoustic Aerosol Absorption (DPAS Series) — 4-generation maturation chain¶
Differential Photoacoustic Absorption Spectroscopy (DPAS) — Aerodyne's core aerosol characterization technique. Measures light absorption by aerosol particles via acoustic pressure waves induced by absorbed laser energy. The "differential" approach uses two cells (reference + sample), comparing microphone signals to cancel common-mode noise from gas-phase NO₂ and acoustic interference.
4-generation SBIR chain:
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 16734 | DPAS Particle Absorption Monitor | I | 2013 (6mo) | 1→4 |
| 17794 | DPAS Particle Absorption Monitor | II | 2014-2016 | 4→7 |
| 34039 | 3-Color DPAS Aerosol Absorption | I | 2015 (6mo) | 2→4 |
| 89469 | 3-Color DPAS Aerosol Absorption | II | 2016-2018 | 4→8 |
Final instrument [89469] architecture (from final summary chart, file 362243): Three simultaneous wavelengths — 532nm (green), 671nm (red), 473nm (blue) — combined via dichroic mirrors into a shared optical path. Three modulation frequencies (f₁, f₂, f₃) from a function generator. Reference Cell + Sample Cell, each with a microphone. Both connected to bandpass preamplifier → 24-bit DAQ → FFT → results. FFT at three frequencies extracts simultaneous absorption at all three wavelengths. No moving parts, no filter changes. Target: NASA Airborne Measurement Program (<25 lbs, ~300W).
Customer: NASA LaRC Aerosol group. PM: Richard H. Moore (LaRC).
Track 2: Multi-Pass Optical Cells — Foundation technology for all Aerodyne instruments¶
Optical multi-pass cells are the sensitivity multiplier across all Aerodyne trace-gas instruments — they extend the optical path length of a compact instrument by bouncing light between high-reflectivity mirrors. More passes = longer path = lower detection limit.
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 112813 | Advanced Multi-Pass Cell Technology | I | 2019-2020 | 3→6 |
| 112897 | Advanced Multi-Pass Cell Technology | II | 2020-2024 | 6→8 |
Phase II final summary (file 377198) shows four simultaneous innovation directions: 1. Open-path cell design: 4-15m variable base path, >10 passes, remote retroreflector. Enables long-path atmospheric measurement without bringing atmosphere into the instrument. 2. Compact closed-path cell: Wave-optic optimized hexagonal geometry. 3D-printed cells with tailored internal geometry for volume reduction. 3. Path doubling with beam reinjection: Laser re-enters the cell at a different angle, doubling effective path length without increasing cell dimensions. 4. Multi-angle multiplexing: Multiple beams at different angles simultaneously — shown in actual lab photo as a grid of bright spots. Path length multiplication.
These innovations underpin Aerodyne's full gas-sensing product line. The SBIR funded generic technology advancement that benefits all Aerodyne NASA instruments.
PM: Joshua DiGangi (LaRC, joshua.p.digangi@nasa.gov). 4-year Phase II (longest observed in Aerodyne portfolio).
Track 3: Cryomechanical Preconcentration — TRL 9 endpoint¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 93429 | Cryomechanical Preconcentration System | I | 2017 (6mo) | 1→5 |
| 101849 | Cryomechanical Preconcentration System | II | 2018-2021 | 5→9 |
TRL 9 characterization (from system photo, session 94): Complete rack-mounted instrument on laboratory bench. Components: Stirling cryocooler head (circular disk, cryogen-free), novel sample trap (conformational coating, PEEK spacer, modified tower, pigtail, copper plating, sample tubing), connected GC-MS system, control electronics and pressure gauges. This is a fieldable laboratory instrument deployed to NASA-sponsored atmospheric monitoring stations (AGAGE network). PM: Thomas Hanisco (GSFC).
The TRL-9 designation reflects NASA's own stringent atmospheric measurement standards, not "flight proven." Customer is the AGAGE network under NASA sponsorship. This is not TRL inflation — the instrument is deployed and collecting mission data.
Track 4: Aviation Soot Monitoring — ICAO emissions compliance¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 9727 | Aircraft Sulfate Particle Emissions | I | 2011 | 2→4 |
| 9368 | Aircraft Sulfate Particle Emissions | II | 2012-2014 | 3→5 |
| 89895 | Electrometric Aviation Soot Monitor | I | 2016 | 1→4 |
| 93465 | Electrometric Aviation Soot Monitor | II | 2017-2019 | 4→8 |
| 9692 | Non-Thermal Soot Denuder | standalone | 2011 | 4→8 |
Application: Aircraft engine exhaust characterization for ICAO emissions standards. The "electrometric" approach measures electrical charge on soot particles as a proxy for particle number — complementary to optical methods and capable of detecting sub-50nm particles that evade optical detection.

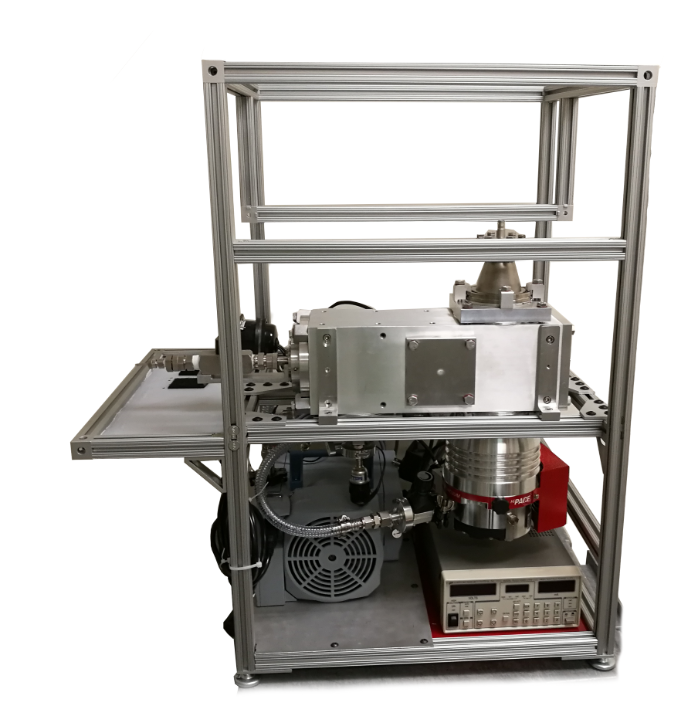

Instrument photo (TRL 8 prototype, file 366775): Bench instrument mounted in aluminum T-slot extrusion frame. Three tiers visible: - Upper: cone-shaped sample inlet → vacuum-flanged measurement chamber (likely electrometer or charge amplifier assembly) - Middle: electronics/signal processing module in machined aluminum housing - Lower: Pfeiffer turbomolecular pump (red casing) + scroll roughing pump + rack-mounted controller
The turbomolecular pump indicates reduced-pressure operation — particles are sampled and transported through a controlled-pressure flow path. The vacuum environment suppresses gas-phase interference and enables controlled particle charging and detection.
Taxonomy anomalies: [93465] classified TX01.1.3 (Cryogenic Propulsion) — completely wrong, this is a measurement instrument. [9692] classified TX01.3.2 (Turbine-Based Combined Cycle) — also wrong. Early SBIR-era taxonomy not maintained. All three TRL-8 completions are real — aviation soot measurement instruments delivered to NASA's aeronautics programs.
PM: Richard H. Moore (LaRC) throughout.
Track 5: NOx Monitors (CAPS — Cavity Attenuated Phase Shift)¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 113013 | Two-Channel CAPS NOx Monitor | I | 2020-2021 | 3→5 |
| 113557 | Two-Channel CAPS NOx Monitor | II | 2021-2024 | 5→6 |
CAPS technique: measures nitrogen dioxide via phase shift of amplitude-modulated light in a resonant cavity. Two-channel (NO + NO₂ simultaneously). Target: airborne platforms. Phase II TRL 5→6 modest advance over 3 years.
Track 6: Humidity Probes (Contrail-Cirrus Avoidance)¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 125569 | Humidity Probe for Contrail-Cirrus Avoidance | I | 2022-2023 | 3→4 |
| 154493 | Humidity Probe for Contrail-Cirrus Avoidance | II | 2023-2025 | 4→7 |
Newest major track. Application: real-time humidity measurement to support sustainable aviation (contrail avoidance routing). Phase II reaches TRL 7 — near airborne deployment readiness.
Track 7: Particle Optical Extinction (Three-Color)¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 17979 | Three Color Particle Optical Extinction Monitor | I | 2014 | 5→6 |
| 33448 | Three Color Particle Optical Extinction Monitor | II | 2015-2018 | 5→7 |
Measures particle light extinction (absorption + scattering) at three wavelengths. Complementary to the DPAS absorption-only measurement. TRL 5→7 is a modest gain over 3 years, but starting from TRL 5 reflects prior development.
Track 8: Aerosol Absorption Standard (Reference Artifacts)¶
| ID | Title | Phase | Period | TRL |
|---|---|---|---|---|
| 112901 | Aerosol Absorption Standard | I | 2020-2021 | 3→5 |
| 113072 | Aerosol Absorption Standard | II | 2021-2024 | 4→6 |
An often-overlooked track: calibration reference artifacts for aerosol absorption instruments, not the instruments themselves. A reference standard that enables comparing measurements across different instruments and sites. Critical for network-scale monitoring programs like AGAGE. TX15.1.5 (Propulsion Flowpath) is misclassified — this is TX08 metrology.
Two Isolated Projects¶
| ID | Title | Program | Period | TRL | Notes |
|---|---|---|---|---|---|
| 16795 | Two-Stage Waste Gasification Reactor (Mars ISRU) | SBIR | 2013 (6mo) | 1→3 | One-off; not a sustained track |
| 33433 | Dwell Mechanism for Free-Piston Stirling Engine | SBIR | 2015 (6mo) | 2→4 | Likely connected to Stirling cryocooler tech in Track 3 |
The "NASA as Customer" Pattern¶
Aerodyne differs from Freedom Photonics in a fundamental way:
| Dimension | Freedom Photonics | Aerodyne |
|---|---|---|
| End customer | Commercial (GPON, telecom, co-investors) | NASA programs (airborne measurement, AGAGE) |
| SBIR as... | Investment in commercial tech | R&D funding for NASA-specific instruments |
| Outcome masking | Real commercial transitions not recorded | NASA deployment not recorded as outcome |
| "Success" state | TechPort invisible | TechPort invisible (same symptom, different cause) |
Both firms have 0 Infused_To and 0 Transitioned_To. But for Freedom Photonics, the missing outcomes are commercial deals. For Aerodyne, the missing outcomes are NASA program deployments — the AGAGE network stations, the airborne science fleets. The TechPort outcome fields weren't designed to capture "instrument delivered to existing NASA infrastructure."
This is a third commercial masking sub-pattern: supplier to NASA's own measurement programs, where "commercial transition" is the instrument being integrated into a NASA field campaign.
Key Personnel¶
| Name | Role | |
|---|---|---|
| Zhenhong Yu | Primary PI (Tracks 1, 4, 7, 8) | zyu@aerodyne.com |
| John Barry McManus | PI (Track 2, multi-pass cells) | mcmanus@aerodyne.com |
| Richard H. Moore | NASA PM (LaRC) — primary customer contact; coordinates full LaRC atmospheric SBIR ecosystem (26 projects, 5+ vendors) | richard.h.moore@nasa.gov |
| Joshua DiGangi | NASA PM (LaRC) — Track 2 | joshua.p.digangi@nasa.gov |
| Thomas Hanisco | NASA PM (GSFC) — Track 3 | hanisco@gsfc.nasa.gov |
Cross-References¶
- larc-airborne-measurement-program.md — NEW (session 96): Full 26-project Richard H. Moore PM portfolio; Aerodyne is the largest vendor (11 projects) but Handix Scientific (8), SPEC (2), CloudSci (2), MetroLaser (1) also appear. Moore coordinates the full LaRC atmospheric SBIR ecosystem.
- sbir-sttr-high-trl.md — TRL 7-9 completion profiles; Aerodyne cryomech TRL-9 document read (system photo, session 94)
- tx08-sensors-instruments.md — TX08 high-TRL vendor landscape
- freedom-photonics.md — Contrasting "NASA as customer" vs "commercial with commercial customers" patterns
- outcome-tracking.md — Third commercial masking sub-pattern; supplier to NASA measurement programs
