Carnegie Mellon University — Whittaker Lunar Pit Exploration¶
Lead PI: William "Red" Whittaker, Professor Emeritus, Robotics Institute, Carnegie Mellon University
15-year arc (2011–2029+) · 9 TechPort projects across 3 programs · Astrobotic founder
Investigated: Session 38, 2026-04-07 | Last updated: Session 70, 2026-04-07
TL;DR¶
Red Whittaker — CMU Robotics Institute legend and Astrobotic founder — has the deepest multi-program TechPort footprint of any single PI in the FO portfolio. His FO project 14162 (Flyover Terrain Mapping, TRL 4→6) led directly to NIAC Phase III 96188 — the first-ever NIAC Phase III award ($2M, 2019–2021). The technology chain: FO terrain mapping → NIAC cavehopping → NIAC Phase III lunar pit exploration autonomy → MoonRanger micro-rover (CLPS 2029, $176.7M Firefly task order). A 15-year pipeline from early suborbital testing to a funded lunar surface mission.
Outcome category: NIAC Downstream + CLPS Mission Pipeline
Confidence: Confirmed
FO Project¶
14162 — Flyover Mapping and Modeling of Terrain Features¶
- Period: 2014-10-17 – 2015-05-19 (7 months)
- TRL: 4 → 6
- PI: William (Red) Whittaker
- Destination: Moon and Cislunar
- Primary TX: TX04.1.3 — Onboard Mapping and Data Analysis
- Outcome: "Advanced To" → Ames Collaboration of Signs of Life Detector (14621)
- Description: Multi-modal, high-resolution mapping instrument tested on suborbital vehicle to 600 m altitude, mapping 225 km² with cross-registered color, depth, temperature, and magnetic field. NIAC Phase III award (Jun 2019) directly referenced in description.
- Views: 782
The FO project explicitly bridges to the NIAC Phase III. The project description itself cites the June 2019 NIAC award as a downstream outcome — an unusually clear case of FO program tracking its own lineage.
93996 — Astrobotic Autolanding System (Co-I)¶
- Period: 2013-12-01 – 2016-12-31
- TRL: 4 → 6
- Lead org: Astrobotic Technology, Inc.
- PI: Kevin Peterson; Co-I: William Whittaker
- Description: AAS (Autolanding System) for GPS-denied navigation. Tested on Masten Xaero propulsive lander — autonomous landing within 100m radius with 25cm hazard detection.
Whittaker's co-I role on the Astrobotic FO project connects his CMU research to the company he founded.
Upstream: NIAC + STRG Programs (2011–2019)¶
Whittaker's FO work sits in the middle of a dense STRG/NIAC research portfolio — 7 additional TechPort projects that built the autonomy, navigation, and environmental robustness needed for lunar surface exploration:
| Project | Title | Program | Period | TRL | Key Contribution |
|---|---|---|---|---|---|
| 11573 | Cavehopping Exploration of Planetary Skylights | NIAC | 2012–2014 | 2→3 | Astrobotic lead; "Transitioned To" SBIR/STTR; foundational cave/pit exploration concept |
| 4247 | Avionics for Hibernation and Recovery | STRG | 2011–2013 | 2→3 | Cryogenic survival for lunar night; battery failure mitigation |
| 11494 | Complementary Flyover and Surface Exploration | STRG | 2012–2016 | 2→3 | Points of persistent light on Shackleton crater; solar-powered rover operations |
| 91508 | Automated Precision Maneuvering and Landing | STRG | 2014–2018 | 2→3 | Skylight flyover mapping; asteroid operations; constrained landing autonomy |
| 91569 | Roving in Permanently Shadowed Regions | STRG | 2014–2018 | 2→3 | Volatile exploitation in PSRs; LCROSS/Messenger follow-on |
| 88580 | Fast Rover Navigation Innovations | STRG | 2016–2019 | 2→3 | High-cadence stereo perception; computational efficiency for small rovers |
Pattern: 5 STRG grants (2011–2019) built the foundational autonomy, navigation, and environmental survival capabilities. These fed into the FO flight test [14162] and the NIAC Phase III [96188]. The STRG grants are low-TRL (2→3) building blocks; FO provided the higher-TRL flight validation (4→6).
Downstream: NIAC Phase III — First Ever ($2M)¶
96188 — Robotic Technologies Enabling the Exploration of Lunar Pits¶
- Period: 2019-10-01 – 2021-09-30
- TRL: 4 → 5
- Program: NIAC (Phase III — first-ever)
- Funding: $2M (NASA contract #80HQTR19C0034)
- PI: William (Red) Whittaker
- Destination: Moon and Cislunar
- Key output: PitRanger terrestrial prototype — 33 lb (15 kg) 4WD micro-rover with autonomous pit modeling capability
The "Skylight" mission concept: Deploy a micro-rover near a lunar pit (skylight). The rover autonomously explores the rim, acquires thousands of images from strategic overlooks, processes them onboard to build high-fidelity 3D pit models, and transmits compressed models back through the lander. Completes full pit survey in one lunar daylight period (12 days) vs. years for traditional rovers.
Key accomplishments (from 2021 NIAC Symposium poster): - First-ever demonstrated autonomous pit modeling - PitRanger prototype validated at West Desert Sinkhole (Utah) — 2,520 images from 15 locations - Rover-generated 3D model agreed with LiDAR survey within 17 cm over 3,000 m² comparison area - Computation achieved on mission-relevant avionics - Incremental photogrammetry enables progressive model quality during mission

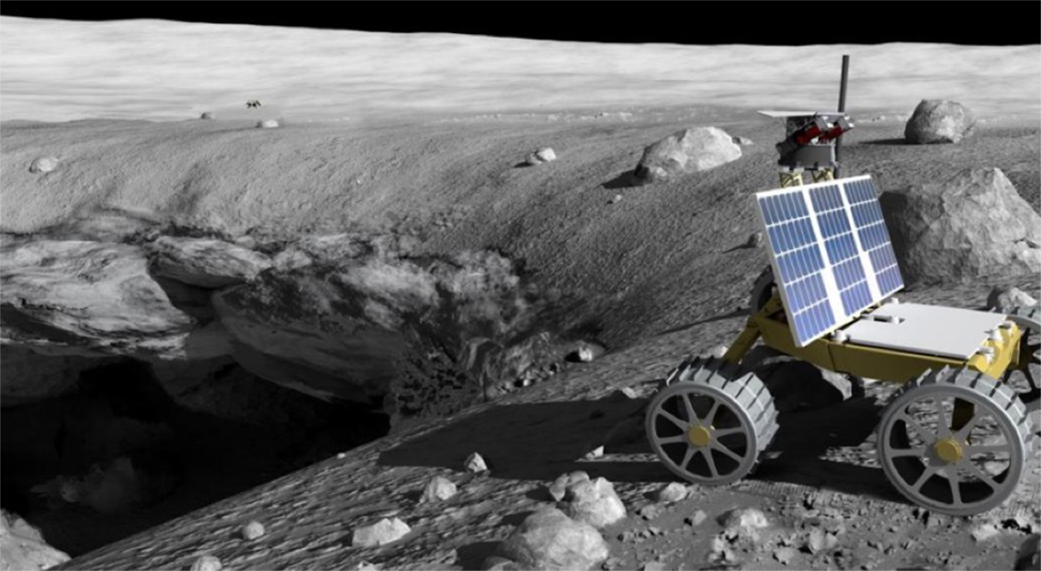

Concept art: PitRanger micro-rover approaching a lunar skylight. From NIAC Phase III 96188.
Further Downstream: MoonRanger (CLPS 2029)¶
MoonRanger is Whittaker's next-generation micro-rover, building directly on the autonomy, navigation, and compact roving technologies matured through the STRG/FO/NIAC pipeline:
- Selected: NASA Firefly Aerospace CLPS task order, $176.7M (announced Aug 2025)
- Delivery: Moon's South Pole, 2029
- Size: Suitcase-sized, ~7 lbs on Moon
- Mission: Scout for volatiles (water ice) in permanently shadowed regions
- Heritage: Direct lineage from STRG PSR roving [91569], FO terrain mapping [14162], NIAC autonomous navigation [96188]
MoonRanger passed its NASA Critical Design Review in 2021. It will fly as a payload on Firefly's Blue Ghost lander under CLPS.
The Astrobotic Connection¶
Whittaker founded Astrobotic Technology (2007, Carnegie Mellon spinoff) to compete for the Google Lunar X Prize. Astrobotic is now one of NASA's two primary CLPS lander providers:
- Peregrine Mission One (Jan 2024) — propellant leak, no lunar landing; $108M CLPS
- Griffin Mission One (VIPER, cancelled by NASA)
- 4 FO projects: 91338, 93996, 106655, plus the Masten technology absorption
- CLPS portfolio: $498M+ in NASA task orders
- Masten acquisition (2022, $4.5M bankruptcy): absorbed M10A engine and lunar landing expertise
The Whittaker→Astrobotic→CLPS chain represents the single longest provenance arc from academic research to commercial lunar landing capability in the TechPort database. The FO project [93996] (Autolanding System) directly contributed to Astrobotic's precision landing capability.
Complete Technology Chain¶
2011: STRG — Avionics for Hibernation [4247] (lunar night survival)
2012: NIAC Phase I — Cavehopping [11573] (pit/cave exploration concept)
2012: STRG — Flyover + Surface Exploration [11494] (Shackleton crater ops)
2013: FO — Astrobotic Autolanding [93996] (GPS-denied precision landing, co-I)
2014: STRG — Precision Maneuvering [91508] (skylight flyover autonomy)
2014: STRG — PSR Roving [91569] (permanently shadowed region navigation)
2014: FO — Flyover Terrain Mapping [14162] (TRL 4→6, suborbital flight test)
2016: STRG — Fast Rover Navigation [88580] (high-cadence stereo perception)
2019: NIAC Phase III — Lunar Pit Exploration [96188] ($2M, first-ever Phase III)
2021: PitRanger prototype validated at West Desert Sinkhole (17cm accuracy)
2021: MoonRanger CDR passed
2025: Firefly CLPS task order for MoonRanger ($176.7M, Aug 2025)
2029: MoonRanger — Moon's South Pole (target)
15-year pipeline from STRG basic research through FO flight validation to NIAC advanced concepts to funded CLPS lunar mission. This is the most complete single-PI program-crossing technology maturation arc in the FO portfolio.
Funding Tracked¶
| Source | Amount | Note |
|---|---|---|
| NIAC Phase III [96188] | $2M | #80HQTR19C0034 (2019–2021) |
| STRG grants (5 projects) | ~$3-5M est. | Typical STRG grant sizes |
| FO [14162] | ~$200K est. | 7-month flight campaign |
| MoonRanger CLPS | $176.7M | Firefly task order (Aug 2025); CMU rover is payload, not full amount |
| Astrobotic CLPS | $498M+ | Founded by Whittaker; includes 4+ task orders |
Note: The $176.7M is Firefly's task order; CMU's share for MoonRanger development is a subset. USASpending search for "Carnegie Mellon" + NASA lunar yielded no direct results (grants may be tracked differently).
Surprise Assessment¶
Pre-query expectation: Standard academia FO project with a single NIAC follow-on.
Actual: 9 TechPort projects across 3 programs (STRG, FO, NIAC) spanning 15 years, all building toward the same lunar surface exploration capability. Plus the Astrobotic founding connection. The NIAC Phase III is the first ever awarded. MoonRanger is heading to the Moon's South Pole in 2029.
Surprise level: HIGH — The depth and coherence of this multi-program arc far exceeds the single FO→NIAC connection initially discovered. Whittaker has systematically used every STMD program to build toward autonomous lunar pit/surface exploration.
Confidence Assessment¶
| Claim | Confidence | Evidence |
|---|---|---|
| FO [14162] led to NIAC Phase III [96188] | confirmed | Project description explicitly cites NIAC Phase III |
| NIAC Phase III was first-ever | confirmed | CMU press release, NASA NIAC records |
| PitRanger validated at West Desert Sinkhole | confirmed | NIAC Symposium poster (2021) |
| Whittaker founded Astrobotic | confirmed | Wikipedia, CMU press, Astrobotic corporate history |
| MoonRanger selected for CLPS 2029 | confirmed | CMU press release Aug 2025, Firefly announcement |
| 9 TechPort projects across 3 programs | confirmed | TechPort contacts search + project records |
Cross-References¶
- Astrobotic — Whittaker-founded company; CLPS lander provider; 4 FO projects
- Protoinnovations — CMU spinoff (Apostolopoulos); VIPER wheel testing
- JPL Precision Landing — Parallel FO precision landing program (G-FOLD/LVS)
- Draper Precision Landing — Another multi-decade FO precision landing arc
- archetypes.md — Archetype 16 "Deep Academic Partnership"
Open Threads¶
- OPEN: MoonRanger mission timeline — 2029 target holds; Blue Ghost Mission 4 (not 3); track for delays
- OPEN: PitRanger flight opportunity — no mission host confirmed for actual lunar pit exploration
- OPEN: CMU USASpending funding — grants may be tracked under different mechanisms than USASpending contracts
- OPEN: NIAC cavehopping [11573] "Transitioned To" SBIR/STTR [2569] — what was this SBIR?
Session 70 Update (2026-04-07) — Whittaker Emeritus + Blue Ghost De-risked¶
Whittaker now Professor Emeritus: Multiple Feb 2026 sources (AP photo captions, ResearchGate) list Whittaker as Professor Emeritus at CMU's Robotics Institute. On Feb 27, 2026, he attended the grand opening of CMU's new Robotics Innovation Center (RIC) in Pittsburgh's Hazelwood neighborhood — a 150,000 sq ft facility with 50+ labs, 50,000 sq ft indoor robotics testing floor, aquatic lab, and 1.5-acre outdoor testing area. FieldAI is the inaugural corporate tenant. The emeritus transition doesn't appear to affect MoonRanger — the project is presumably far enough along that it continues under institutional momentum.
Blue Ghost Mission 1 — Fully Successful (Mar 2025): Firefly's Blue Ghost Mission 1 launched Jan 2025 and landed in Mare Crisium March 2, 2025. Completed a 346-hour surface mission — the first fully successful commercial lunar soft landing. This significantly de-risks the Blue Ghost platform that will deliver MoonRanger on Mission 4 (2029). The Firefly lander is now flight-proven, unlike the CLPS landers that failed (Astrobotic Peregrine, Intuitive Machines IM-1 tip-over).
MoonRanger mission clarification: Delivery is on Blue Ghost Mission 4 (previously just noted as "Blue Ghost"). Co-manifested payloads include a Canadian Space Agency rover, LIMS, LRA, and SCALPSS. MoonRanger will operate for up to 14 Earth days (one lunar day), carrying a Neutron Spectrometer System to study hydrogen-bearing volatiles at the south pole.
Astrobotic Griffin-1 update: VIPER cancelled (Jul 2024). New primary payload: Astrolab FLIP rover (Feb 2025). Griffin-1 still NET Jul 2026. VIPER resurrected via Blue Origin CS-7 ($190M, Sep 2025) — delivery on Blue Moon MK1, late 2027.
Updated timeline:
...
2025: Blue Ghost Mission 1 — first successful commercial lunar landing (Mar 2)
2025: Firefly CLPS task order for MoonRanger ($176.7M, Aug)
2026: Whittaker transitions to Professor Emeritus; RIC opens (Feb 27)
2026: Griffin-1 with FLIP rover NET Jul (VIPER removed)
2027: VIPER on Blue Origin Blue Moon MK1 (late 2027, CS-7 $190M)
2029: MoonRanger — Moon's South Pole, Blue Ghost Mission 4 (target)
No new PitRanger developments. No new publications or research projects. No change to core assessment.
Session 70 · 2026-04-07
Sources: TechPort [14162], [96188], [93996], [11573], [4247], [11494], [91508], [91569], [88580]; CMU press releases; NIAC Symposium poster (2021); Firefly BG-1 mission reports; AP photos Feb 2026
